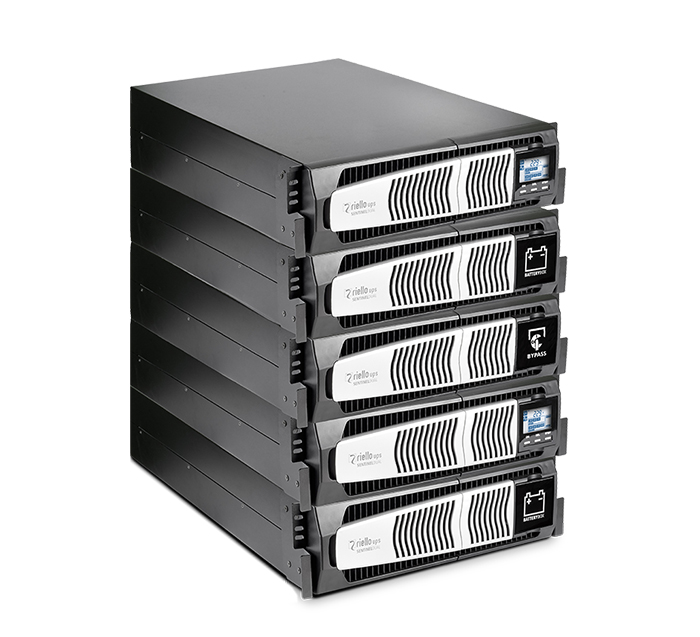

SDU series is enriched with new accessories for parallel configuration and maintenance.

Ideal for guaranteeing maximum power protection and resilience for your critical applications, while also optimizing initial installation costs.

Bundle Sentinel Dual Modular System

Users Guides

Select File Language:

User's manual Sentinel Dual SDU Modular MBB

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh
Technical specifications of the model

Available for Sentinel Dual SDU models from 5000 to 10000 VA.

  • Rack/tower configuration
  • Same UPS and Battery cabinet Look&Feel
  • It can parallel up to 3 UPS units
  • Simplified installation
  • Hot-swap connection for each UPS
  • The manual bypass switch is protected under the plastic front cover

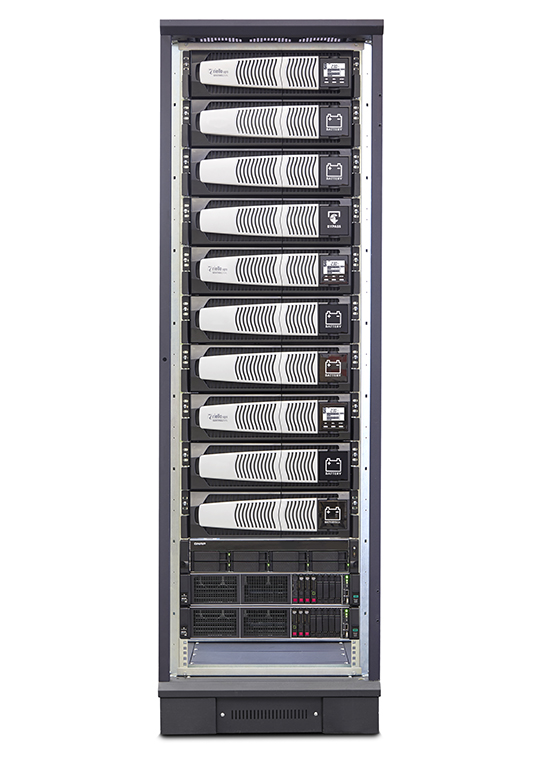

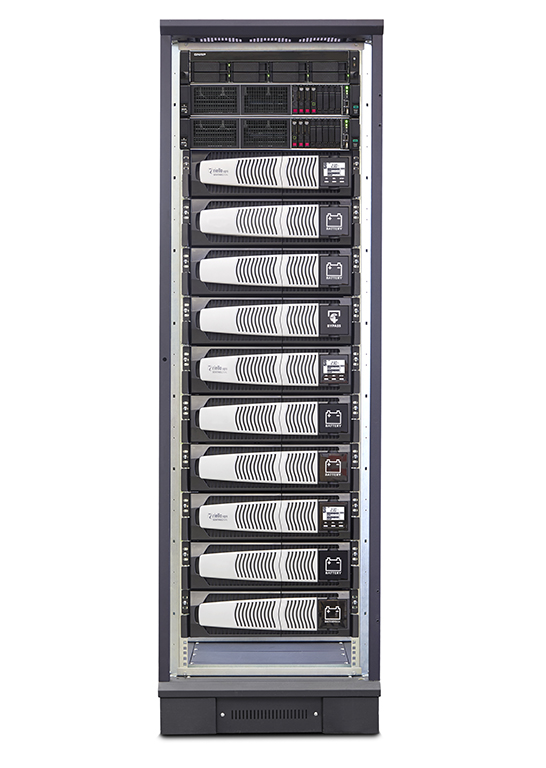

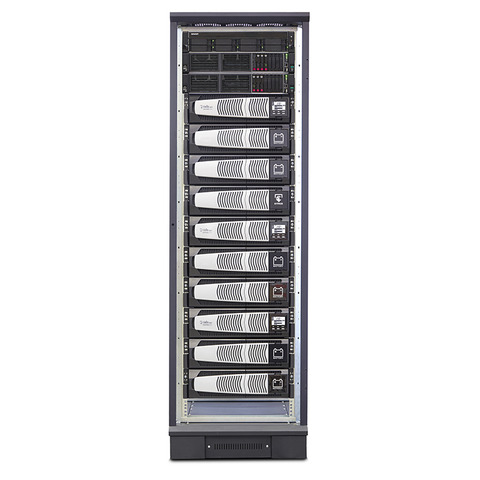

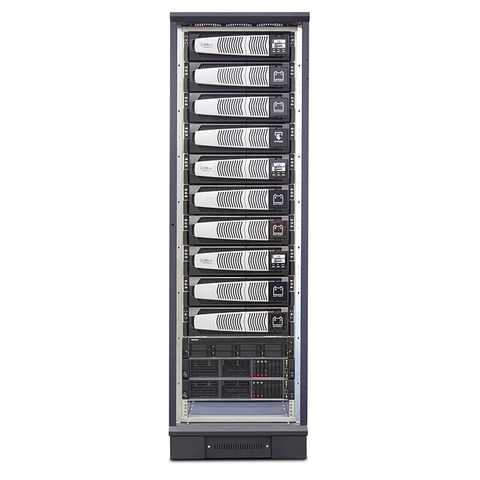

Up to 3 Sentinel Duals can be operated in parallel in either capacity or N+1 redundant configuration offering increased reliability for critical system.

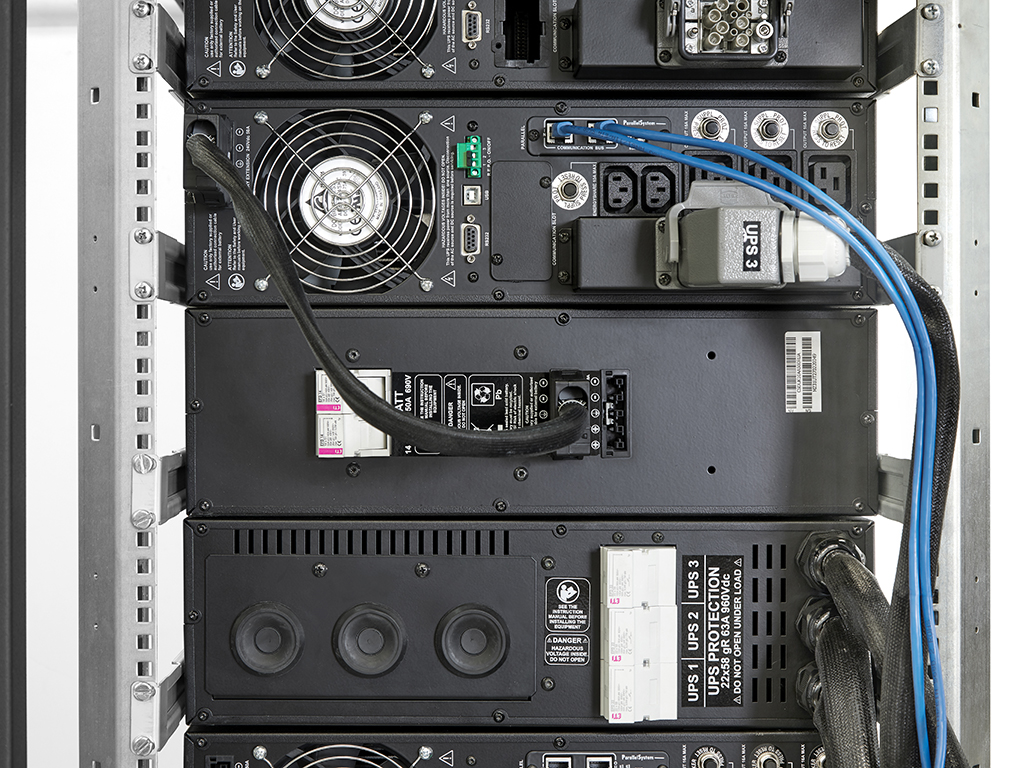

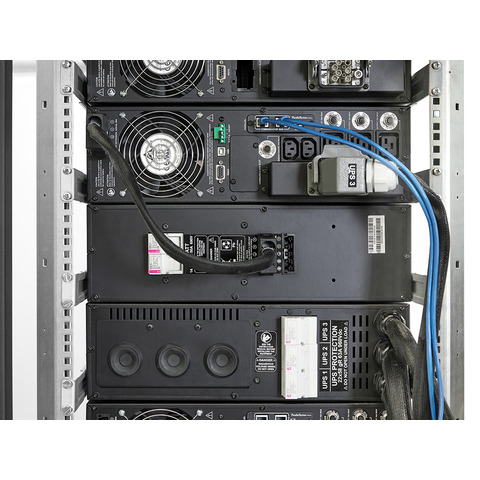

The kit permits hot-swap operation for any connected UPS and maintenance bypass for the entire parallel system.

There are available 2 different options:

  • 1 ph 50 A, 3 connectors kits
  • 3 ph 18 A, 3 connectors kits.
