Reliable power for a sustainable world

Power Range: 500 - 1600 kVA

Multi Power2 is the evolution of our modular UPS, which aims to offer higher power density, simpler integration to both existing and new installations, and last but not least, enhanced operating efficiency and global flexibility to reduce both the upfront investment and the day-to-day operational costs.

Thanks to its modular architecture, the system can be adapted to the load demands to avoid any oversizing and provide the best performance in every working condition.

With a new extremely high-density power module, available in two different models, Multi Power2 reaches up to 1600 kW in a single UPS and up to 6400 kW with 4 systems in parallel.

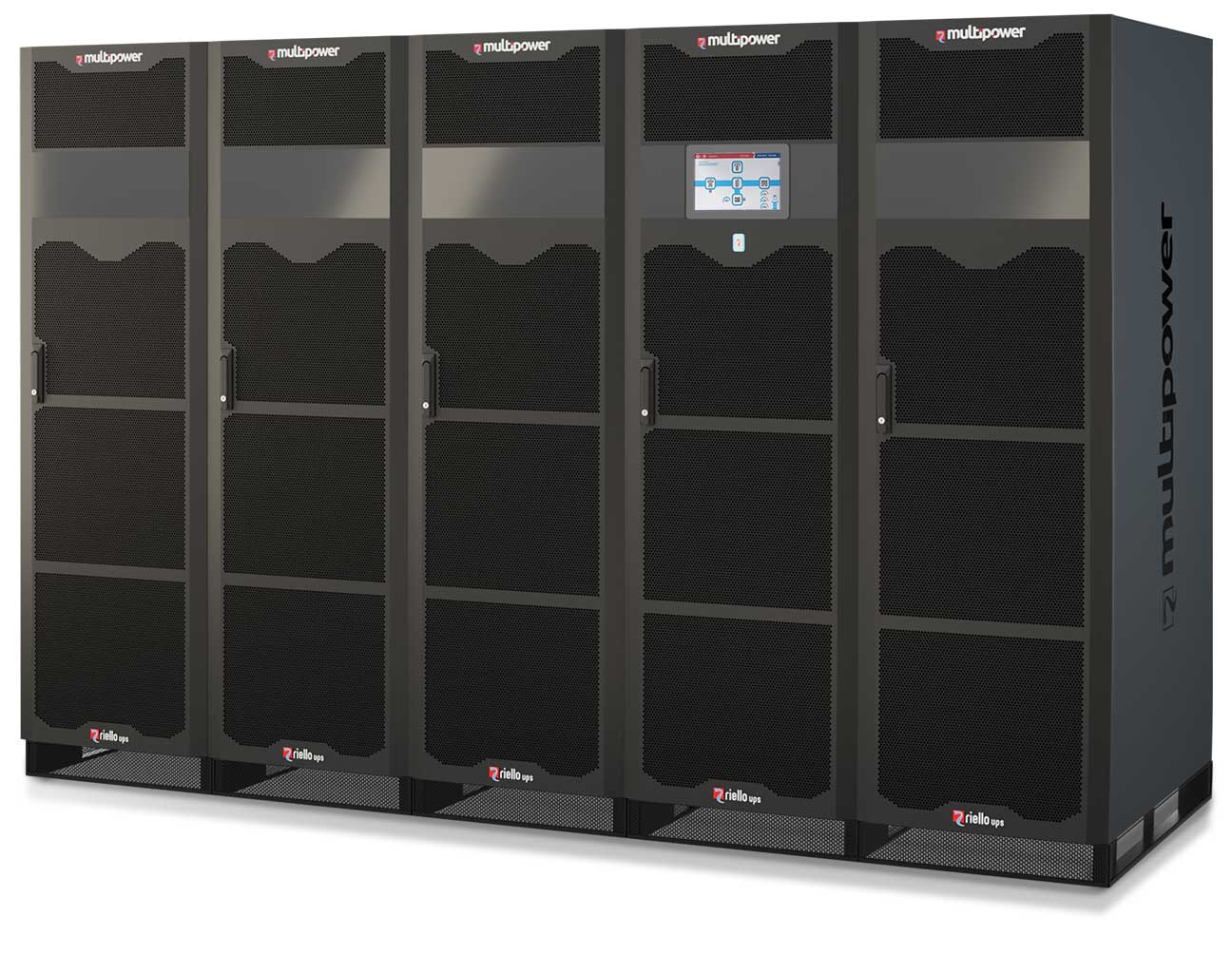

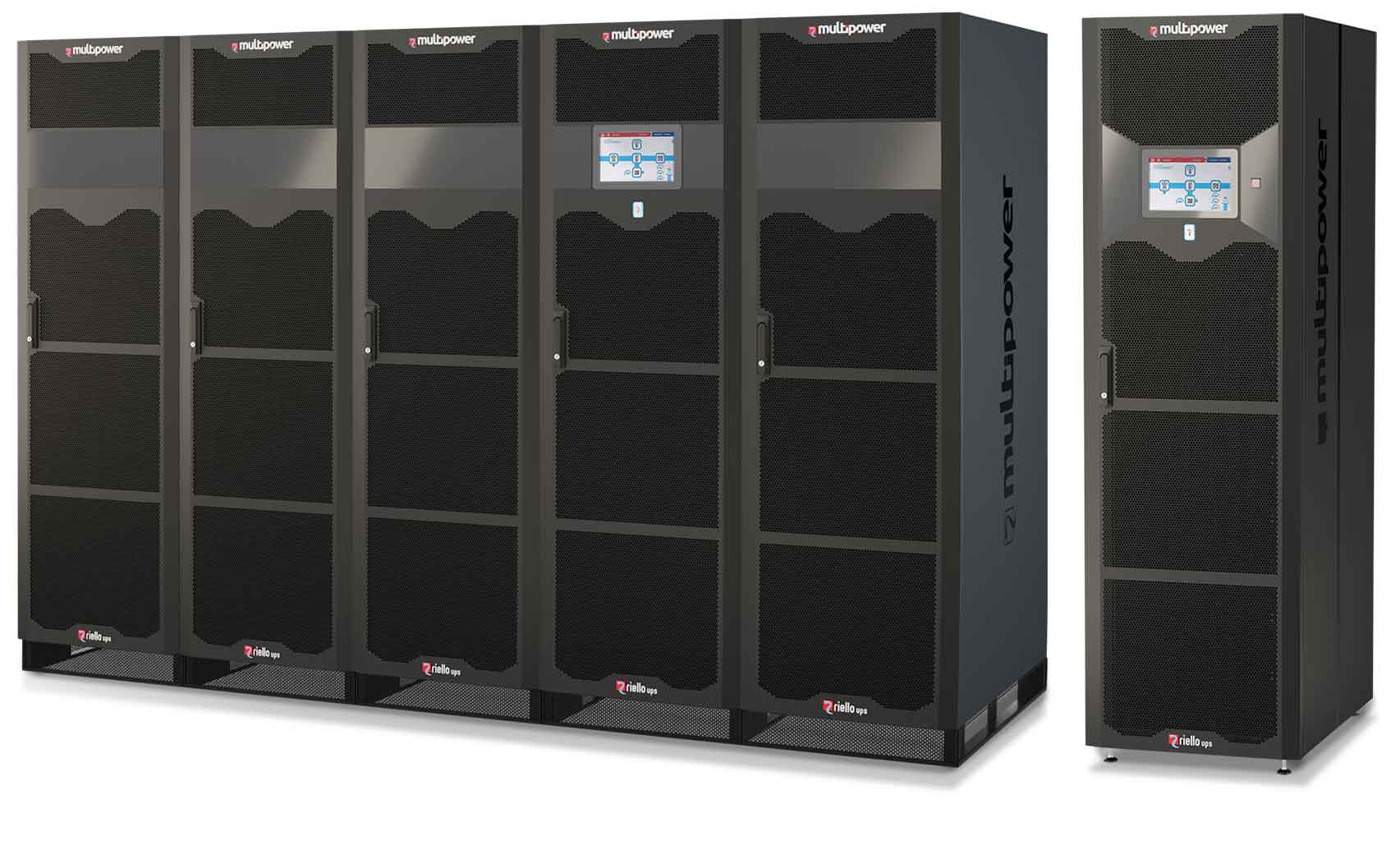

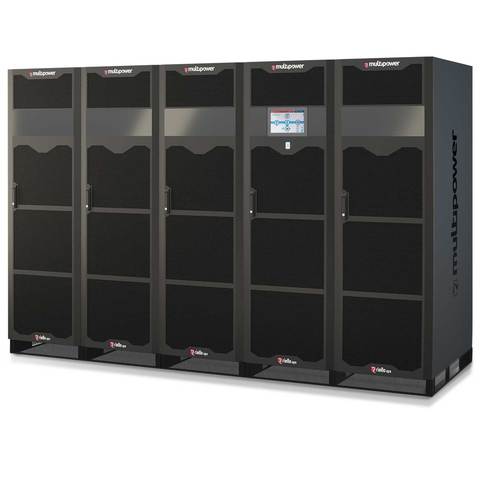

Multi Power 500-1250 kW
Multi Power2 display


  • Ultra-high efficiency

  • Ultimate availability

  • Risk-free scalability

  • Smart Modular Architecture (SMA)

  • Truly sustainable

Brochures and data sheets

Select File Language:

Multi Power2

Technical specifications of the model

The biggest challenge of our time is sustainability. This is the reason why we developed the Multi Power2 Power Module based on the latest silicon carbide technology (SiC), which reduces cooling requirements whilst enabling more compact, more reliable, and more robust solutions.

The Power Modules could reach an efficiency up to 98.1% in ON LINE double conversion, providing the best power supply to critical equipment whilst minimising operating costs and energy losses.

High efficiency is achieved even in case of extremely low loads thanks to the EFFICIENCY CONTROL Mode, where the system will automatically activate only the required number of Power Modules, ensuring the highest efficiency and, at the same time, the required redundancy level. Multi Power2 can also work in temperatures up to 40 °C (without any derating), minimising the demand and consumption of cooling systems.

Extremely Flexible

The Multi Power2 has been conceived to meet the specific needs of each installation and quickly adapt to any load increase. Thanks to the hot-swappable Power Modules, any increase in power can be done while the unit is still working in ON LINE double conversion without any disruption to the load. All the major components of the UPS are modular and can be easily added and/or replaced, minimising the site intervention cost and avoiding any downtime.

Several configuration and frames are available:

  • PCM: very compact solution with integrated manual bypass.
  • PC0: unit supplied with unique I/O and without switches to simplify the integration with the existing electrical infrastructure and to meet any space constraints.
  • PCS: fully integrated, for a complete, simple and very reliable installation, with main input, bypass, manual bypass and output switches.

Reliable and Resilient

The Multi Power2 is extremely reliable as it is designed to avoid any single point of failure. This principle is applied to all the parts of the unit, even to the internal communication structure, which is completely redesigned and made with two separate and fully redundant high-speed buses. To provide the highest level of quality and process control, each component of the system, from the modules to the cabinet, is designed and manufactured in Italy.

At the end of the production line, all modules and full units undergo specific tests to verify that each component operates correctly. All collected measurements and data are analysed to keep improving our products and provide our customers with the most updated technologies. To enhance the lifespan of the UPS, each module incorporates status counters, as well as temperature and humidity sensors, providing real-time analytics for operators.

Furthermore, thanks to embedded intelligence, power computing capacity, and outstanding connectivity, we can monitor remotely the status of the UPS and provide dynamic and bespoke after sales services.
